1972 Ford Capri RRS 2600 Group 2
|
Carrosserie
|
Coupe
|
|
Transmissie
|
Manual
|
|
Kleur
|
Green
|
|
Bekleding
|
Cloth
|
|
Stuur
|
Lhd
|
1972 Ford Capri RS 2600 Group 2
Prolifically campaigned and developed from 1972 through 1978 by “Il Ragno” competing
in both the European and Italian Touring Car Championships.
Specification:

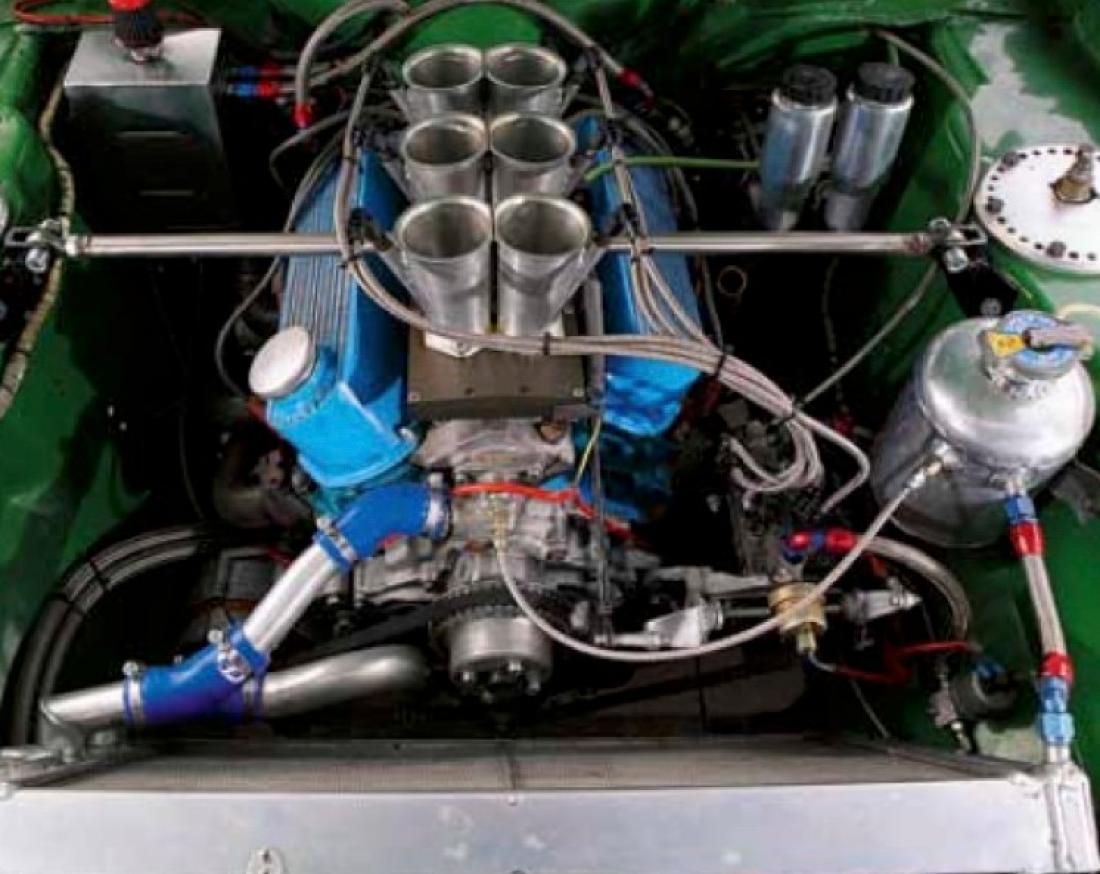

ENGINE:
materials: engine block: cast iron – engine head: aluminium – sump: aluminium
cylinder liners: cast iron
capacity: 2.995 cc.
bore: 69 mm.
stroke: 96 mm.
compression ratio: 12:1
power/rpm: 300 HP at 7.000 rpm
torque/rpm: 45 kgm at 6.000 rpm
exhaust: steel manifold, 3.1 + 3.1
fuel supply: mechanical injection Kugherfischer, horizontal guillotine
ignition: mono ignition coil
lubrication system: pressure wet sump
TRANSMISSION:
clutch: syntered dry double disc
gearbox: manual, five speed + Rev., ZF

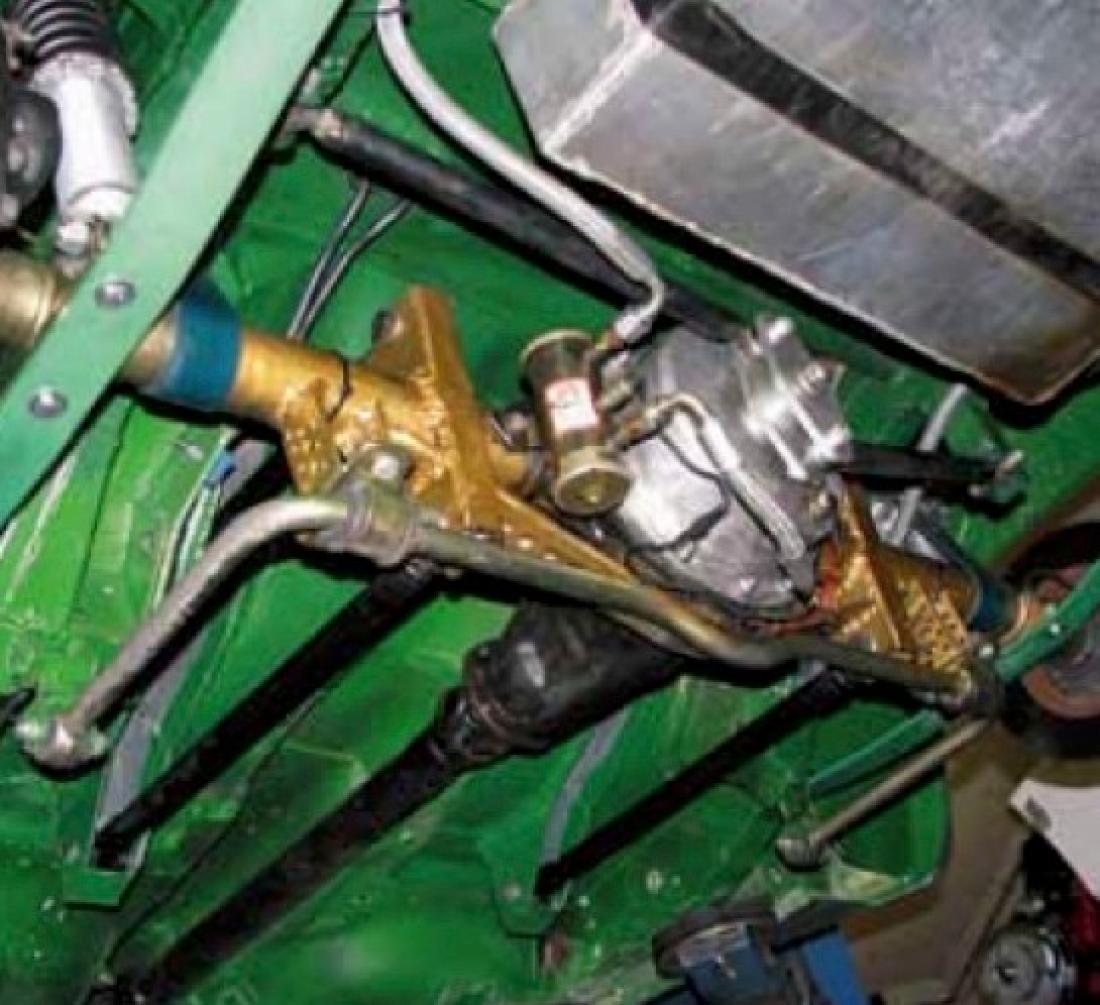

differential: Colotti limited slip diff. (80%) –
diff ratio: 9:41 – 8:41 – 10:41 – 10:43
wheels / tyres: front 15”x 10J” / rear 15” x 12J”, Slick
BODY:
bodywork / doors: unitized body (re-welded & reinforced), with 6 point bolted roll bar application / two doors, Coupé
front suspensions: independent wishbones, Mc Pherson, with anti-roll bar
springs: helical springs
dampers: telescopics, extension and compression adjustable, Koni Racing
back suspensions: longitudinal arms / anti-roll bars
springs: helical springs
dampers: telescopics, extension and compression adjustable, Koni Racing
front brakes: ventilated discs – n. 2 Girling calipers - n. 4 pumpings – 304 mm..
rear brakes: discs – n. 2 Girling calipers – n. 2 pumpings - 267 mm.
braking system: double / hydraulic
brake assistance: on demand
brake limitator system: on demand
brake transfer system: included
hand brake: manual

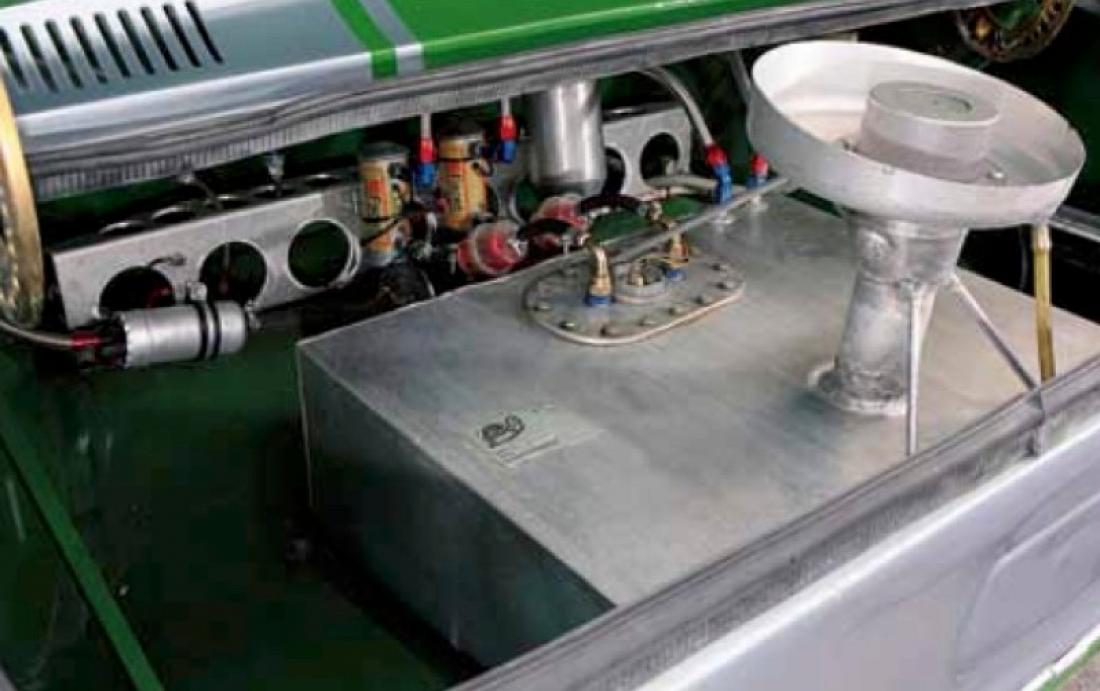

fuel tank capacity: safety tank, 80 lt
WEIGHT AND DIMENSIONS:
wheelbase: 2.560 mm.
front track.: 1.374 mm.
rear track 1.349 mm.
weight: kg. 900
HISTORY:
1973 Imola Autosprint 500
1974 Trofeo Cinquetti Verona
1975 Copa A.C. Verona
1975 Varano
1975 Varano
1975 Coppa Leopoldo Carri Monza
1975 Campionato Italiano Misano
1976 Trofeo Venezia Varano
1977 Coppa A.C. Verona
1978 4 hours of Monza
1978 Coppa A.C. Verona
1978 Coppa Leopoldo Carri Group 2 Monza
1978 Varano Group 2
1978 Trofeo Venezia Varano
1979 Coppa Intereuropa Monza
This sale represents an opportunity to acquire a period war horse that is beautifully prepared and ready to compete in HSCC Endurance as well as Peter Auto Heritage Touring Cup. FIA HTP Period H1 1972 to 1975. The car is now located with us in the UK and ready for inspection and demonstration.
